Murder Accountability Project - Part 1 Data Prep and Map

Catherine Ordun

Catherine Ordun

— 7 min read
Murder Accountability Project - Part 1 Data Prep and Map

The first job I ever had out of college was as an autopsy tech assistant at the Fulton County Medical Examiner's Office. I helped out first as an intern at DeKalb County on death scene investigations, and later after college in Fulton County helping the techs perform autopsies and conduct organ procurement. That was one of the best professional experiences of my life providing me the opportunity understand the relationship between law enforcement and medicine, specifically forensic pathology. So, this dataset really was interesting to me, and while the below is a pretty basic data science post, I'll continue to work on this throughout the year to see if I can generate some new insights.


The Data

This data is from Kaggle, available here: https://www.kaggle.com/murderaccountability/homicide-reports. A little overview about it:

The Murder Accountability Project is the most complete database of homicides in the United States currently available. This dataset includes murders from the FBI's Supplementary Homicide Report from 1976 to the present and Freedom of Information Act data on more than 22,000 homicides that were not reported to the Justice Department. This dataset includes the age, race, sex, ethnicity of victims and perpetrators, in addition to the relationship between the victim and perpetrator and weapon used.

Part 1 - Data Prep

data = pd.read_csv(".../database.csv")
print("There are", len(data), "records.")

This dataset has 638,454 records, consisting of 18 object variables and 6 integer variables a total of 24 variables.

print(data.dtypes.value_counts())
print(data.dtypes)
object 18 int64 6 dtype: int64 Record ID int64 Agency Code object Agency Name object Agency Type object City object State object Year int64 Month object Incident int64 Crime Type object Crime Solved object Victim Sex object Victim Age int64 Victim Race object Victim Ethnicity object Perpetrator Sex object Perpetrator Age object Perpetrator Race object Perpetrator Ethnicity object Relationship object Weapon object Victim Count int64 Perpetrator Count int64 Record Source object dtype: object

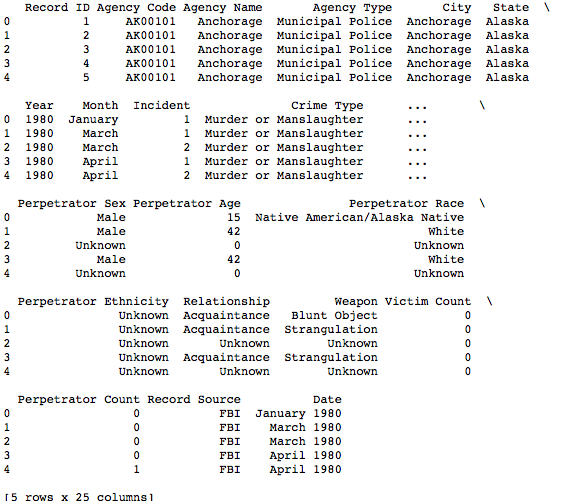

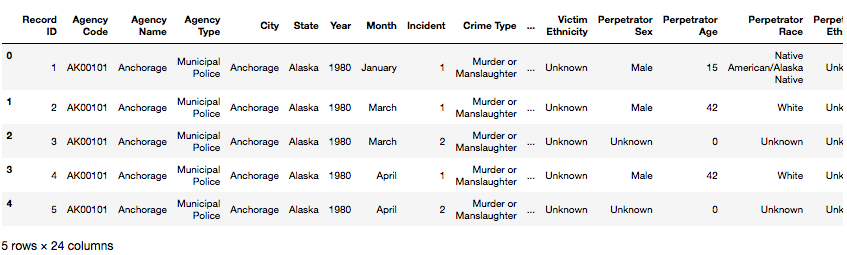

 print(data.head())

How many unique variables for each of those 18 object variables? Let's get the unique category names of each object variable, using the .nunique() command

print("Number unique Agency Name vars", data['Agency Name'].nunique())

Number unique Agency Name vars 9216
Number unique Agency Code vars 12003
Number unique Agency Type vars 7
Number unique City 1782
Number unique State 51
Number unique Month 12
Number unique Crime Type 2
Number unique Crime Solved 2
Number unique Victim Sex 3
Number unique Victim Ethnicity 3
Number unique Perpetrator Sex 3
Number unique Perpetrator Age 191
Number unique Perpetrator Race 5
Number unique Relationship 28
Number unique Weapon 16
Number unique Record Source 2

Let's look at Record ID 3. Here, Record ID 3 was a 30 yo female victim Native American/Alaska Native killed in March 1980 whose Perpetrator demographics are completed unknown

print(data.loc[2])
Record ID 3 Agency Code AK00101 Agency Name Anchorage Agency Type Municipal Police City Anchorage State Alaska Year 1980 Month March Incident 2 Crime Type Murder or Manslaughter Crime Solved No Victim Sex Female Victim Age 30 Victim Race Native American/Alaska Native Victim Ethnicity Unknown Perpetrator Sex Unknown Perpetrator Age 0 Perpetrator Race Unknown Perpetrator Ethnicity Unknown Relationship Unknown Weapon Unknown Victim Count 0 Perpetrator Count 0 Record Source FBI Name: 2, dtype: object

In a different case, Record ID == 5000, this is a 21 yo White Male victim of Murder or Manslaughter in Fairfield, CT. Killed in October 1980 by a 26 yo White Male, a stranger, who used a handgun

print(data.loc[4999])
Record ID 5000 Agency Code CT00158 Agency Name Westport Agency Type Municipal Police City Fairfield State Connecticut Year 1980 Month October Incident 1 Crime Type Murder or Manslaughter Crime Solved Yes Victim Sex Male Victim Age 21 Victim Race White Victim Ethnicity Unknown Perpetrator Sex Male Perpetrator Age 26 Perpetrator Race White Perpetrator Ethnicity Unknown Relationship Stranger Weapon Handgun Victim Count 0 Perpetrator Count 0 Record Source FBI Name: 4999, dtype: object

Change Year to datetime. Convert to categorical: 'Agency Type', 'State', 'Month', 'Crime Type', 'Crime Solved', 'Victim Sex', 'Victim Race', 'Victim Ethnicity', 'Perpetrator Sex', 'Perpetrator Race', 'Perpetrator Ethnicity', 'Relationship', 'Weapon', 'Record Source', and Convert 'Perpetrator Age' to integer.

data2 = data.copy()


data2['Year'] = data2['Year'].astype(str)
data2['Month'] = data2['Month'].astype(str)
print(data2['Year'].unique())
print(data2['Month'].unique())
['1980' '1981' '1982' '1983' '1984' '1985' '1986' '1987' '1988' '1989' '1990' '1991' '1992' '1993' '1994' '1995' '1996' '1997' '1998' '1999' '2000' '2001' '2002' '2003' '2004' '2005' '2006' '2007' '2008' '2009' '2010' '2011' '2012' '2013' '2014'] ['January' 'March' 'April' 'May' 'June' 'July' 'August' 'December' 'November' 'February' 'October' 'September']
data2['Date'] = data2['Month'] + " "+ data2['Year']

Convert the date into a single month-year

data2['Date'] = data2['Month'] + " " + data2['Year']
data2['Date_'] =  pd.to_datetime(data2['Date'], format='%B %Y')
print(data2.dtypes)
Record ID int64 Agency Code object Agency Name object Agency Type object City object State object Year object Month object Incident int64 Crime Type object Crime Solved object Victim Sex object Victim Age int64 Victim Race object Victim Ethnicity object Perpetrator Sex object Perpetrator Age object Perpetrator Race object Perpetrator Ethnicity object Relationship object Weapon object Victim Count int64 Perpetrator Count int64 Record Source object Date object Date_ datetime64[ns] dtype: object

Make sure it converted to only year datetimes

 data2['Date_'].loc[:10]
0 1980-01-01 1 1980-03-01 2 1980-03-01 3 1980-04-01 4 1980-04-01 5 1980-05-01 6 1980-05-01 7 1980-06-01 8 1980-06-01 9 1980-06-01 10 1980-07-01 Name: Date_, dtype: datetime64[ns]

Convert variables into categories

def ascategory(cols, df):
for col in cols:
	df[col] = df[col].astype('category')
  all_cols = ['Agency Type',
        'State',
        'Month',
        'Crime Type',
        'Crime Solved',
        'Victim Sex', 'Victim Race',
        'Victim Ethnicity',
        'Perpetrator Sex',
        'Perpetrator Race',
        'Perpetrator Ethnicity',
        'Relationship',
        'Weapon',
        'Record Source'
   ]

ascategory(all_cols, data2)
print(data2.dtypes)
Record ID int64 Agency Code object Agency Name object Agency Type category City object State category Year object Month category Incident int64 Crime Type category Crime Solved category Victim Sex category Victim Age int64 Victim Race category Victim Ethnicity category Perpetrator Sex category Perpetrator Age object Perpetrator Race category Perpetrator Ethnicity category Relationship category Weapon category Victim Count int64 Perpetrator Count int64 Record Source category Date object Date_ datetime64[ns] dtype: object
data2['Perpetrator Age'] = data2['Perpetrator Age'].astype(str)
data2['Perpetrator Age'] = data2['Perpetrator Age'].str.replace(' ', '0')
data2['Perpetrator Age'].unique()

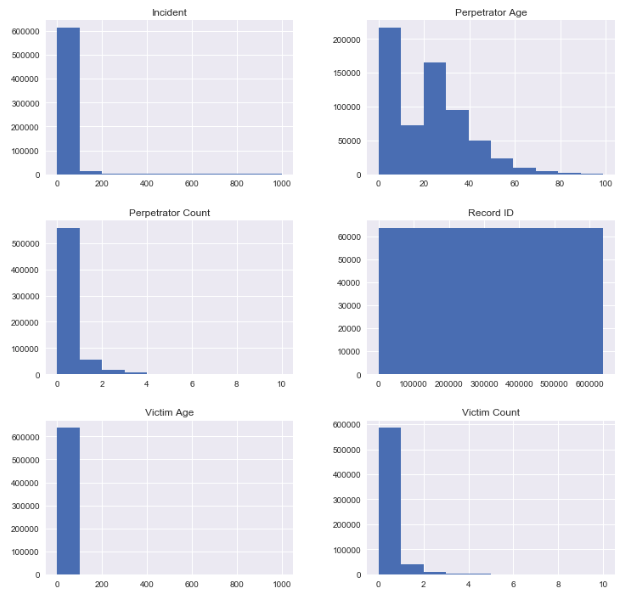

Histogram of all integer dtypes - Record ID isn't relevant.

(data2.select_dtypes(include=['int64'])).hist(figsize=(12,12))

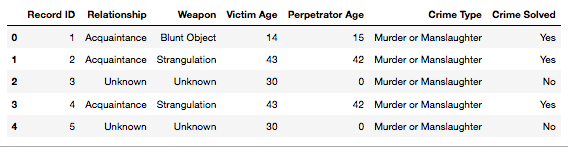

s1 = data2[['Record ID', 'Relationship', 'Weapon', 'Victim Age', 'Perpetrator Age', 'Crime Type', 'Crime Solved']].copy()
s1.head()

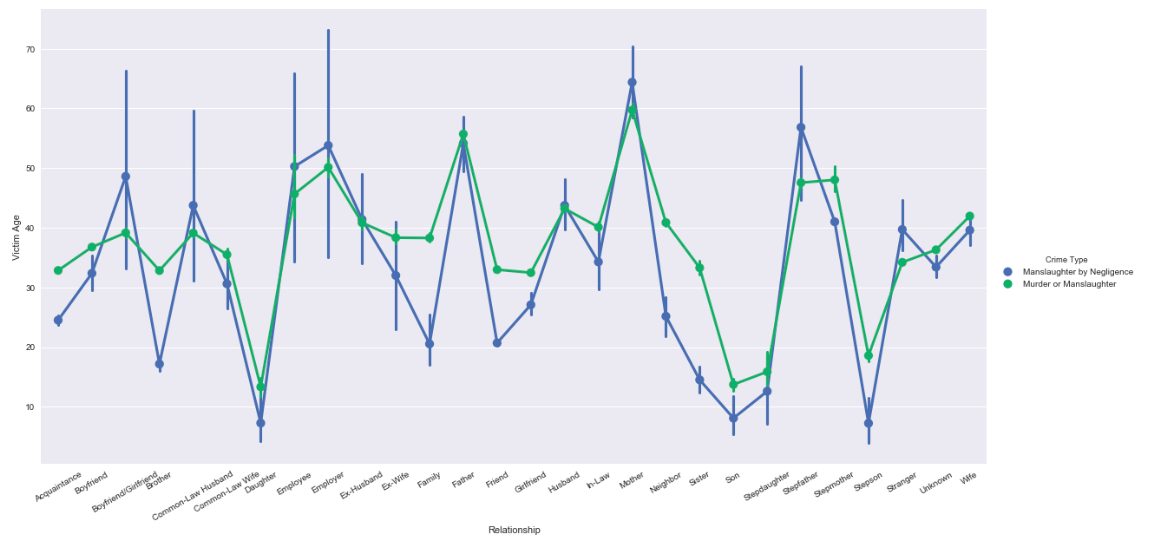

g = sns.factorplot(x='Relationship', y='Victim Age', hue='Crime Type', data=s1, kind="point", size=8, aspect=2)

g.set_xticklabels(rotation=30)

Shows that older people are the victims of murder by family (in-law, mother, family), whereas children are victims or murder by family as well (Boyfriend/Girlfriend, Common-law Wife, Son, Stepdaughter, Stepson).

Part 2 - Mapping Murders in States

Display on a map, the percentage of each Crime Type out of All Crimes for each state. Build one using the Python package folium.

import folium

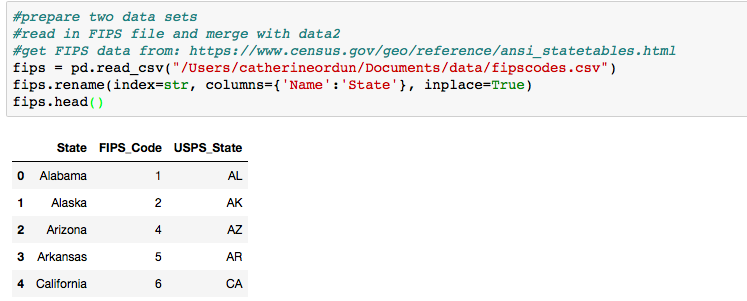

Prepare two data sets and read in FIPS file and merge with data2. Get the FIPS data from: https://www.census.gov/geo/reference/ansi_statetables.html

fips = pd.read_csv("/Users/catherineordun/Documents/data/fipscodes.csv")
fips.rename(index=str, columns={'Name':'State'}, inplace=True)
fips.head()

Now, merge with data2 to get the state abbreviations

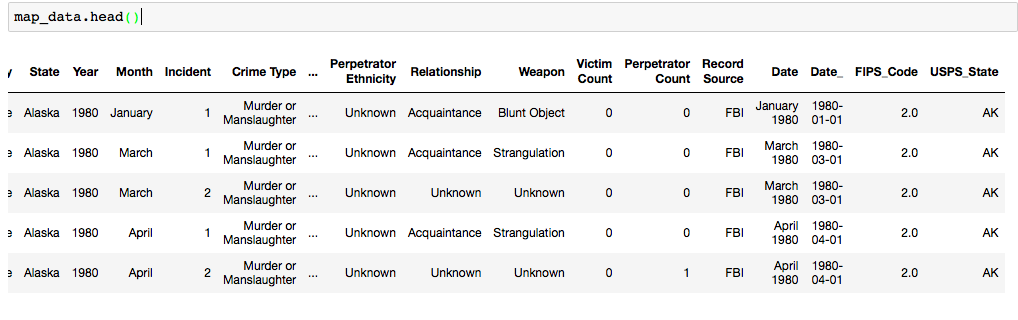

map_data = pd.merge(data2, fips, on="State", how='left')

Get the total records for each state.

map_counts = pd.pivot_table(map_data,index=["USPS_State"],values=["Record ID"],aggfunc=[len])
#reshape
mc1 = map_counts.reset_index()
mc1.columns.droplevel()
mc1.columns = ['State', 'Total']

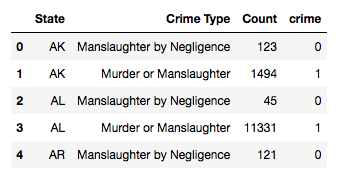

mc2 = map_crime.reset_index()
mc2.columns = mc2.columns.droplevel()
mc2.columns = ['State', 'Crime Type', 'Count']
mc2['crime'] = pd.factorize(mc2['Crime Type'])[0]

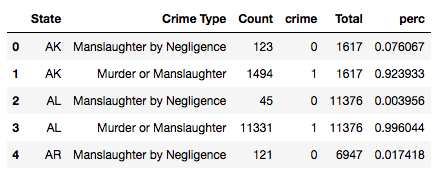

mc2.head()


crimecount = pd.merge(mc2, mc1, on='State')
crimecount['perc'] = crimecount['Count'] /
crimecount['Total']

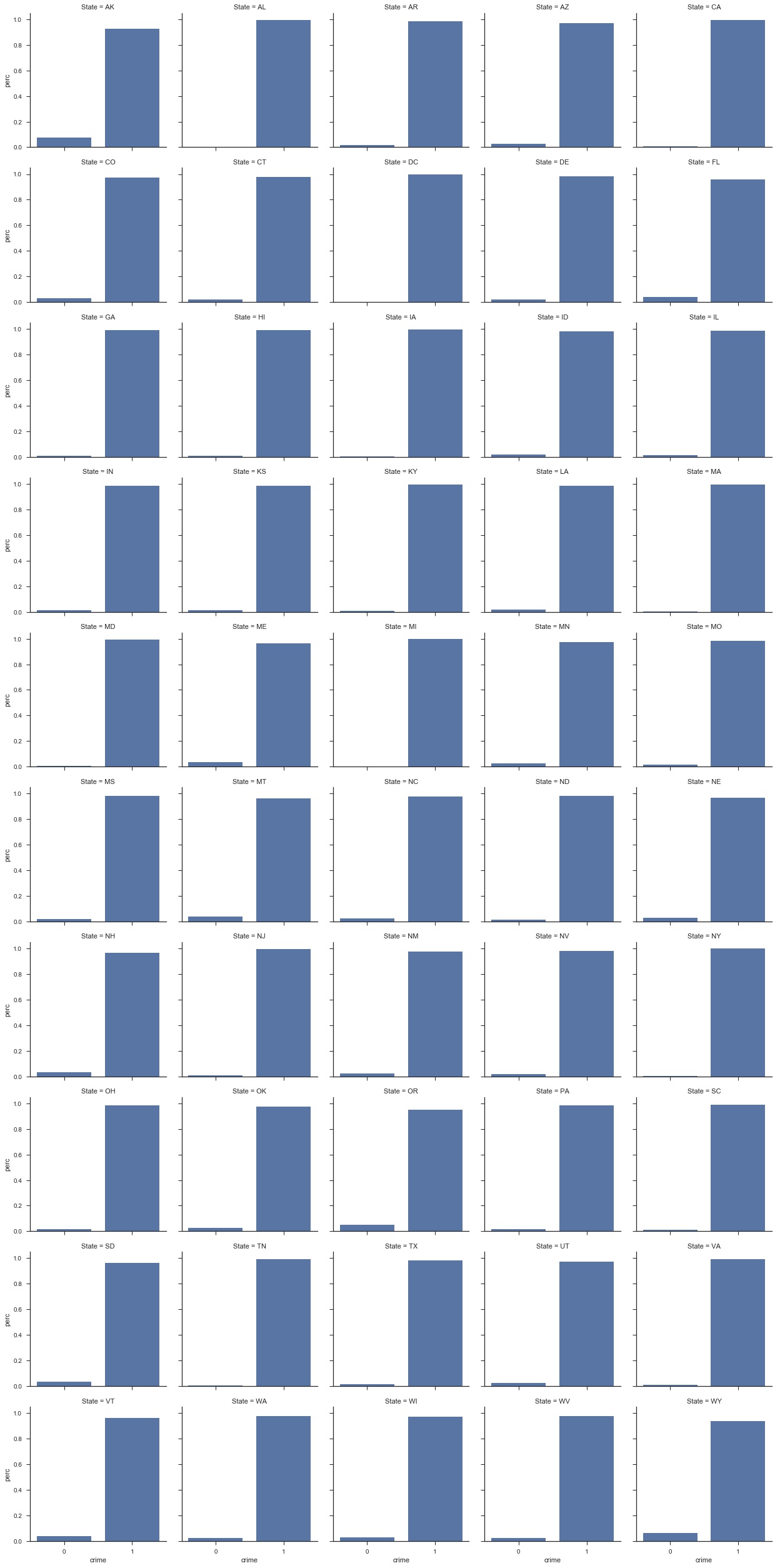

How does'Murder or Manslaughter', compare to 'Manslaughter by Negligence', for each state based on the total percentage of all records during this time frame?

sns.set(style="ticks")
g = sns.FacetGrid(crimecount, col="State", col_wrap=5, size=3.5)
g = g.map(sns.barplot, "crime", "perc")

You need to download the us-states.json file from here: https://github.com/python-visualization/folium/tree/master/examples/data

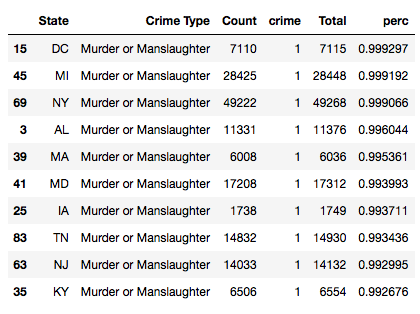

state_geo = r'/Users/catherineordun/Documents/data/us-states.json' ((crimecount.loc[(crimecount['crime']==1)]).sort_values(by ='perc', ascending=False)).head(10)

Let Folium determine the scale

map_2 = folium.Map(location=[48, -102], zoom_start=3)
map_2.choropleth(geo_path=state_geo, data=(crimecount.loc[(crimecount['crime']==1)]),
         columns=['State', 'perc'],
         key_on='feature.id',
         fill_color='YlGn', fill_opacity=0.7, line_opacity=0.2,
         legend_name='perc')

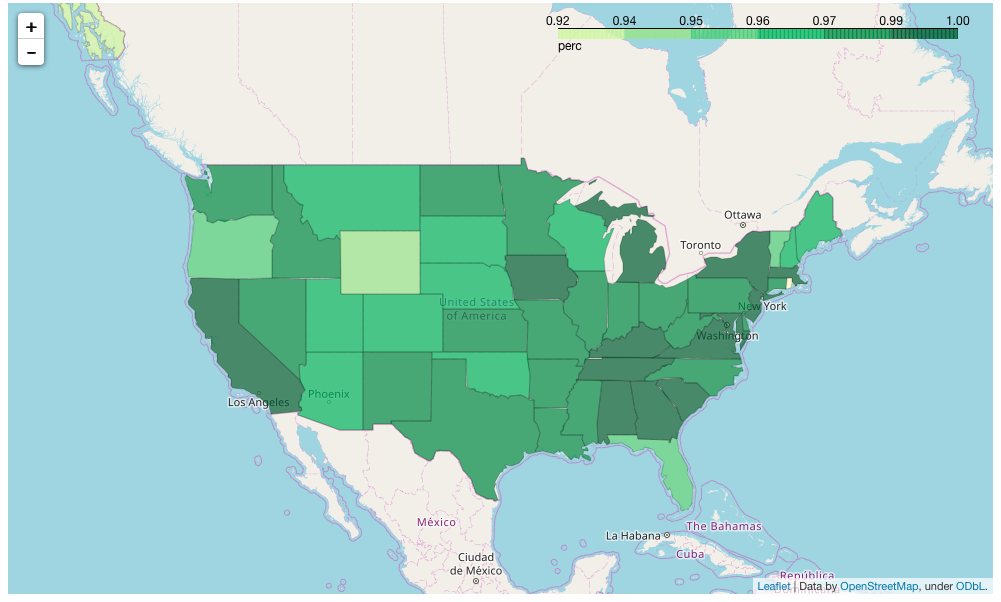

States by percentage of total as being murders

display(map_2)
